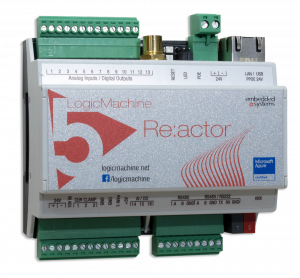

LogicMachine5 Reactor LTE
LogicMachine5 Reactor LTE is all-in-one controller uniting in one device LTE internet access functionality, cross-standard gateway, cloud service integration, complex network logic engine, easy-to create visualization platform, IP Router, I/Os and much more.
Hightlights
- 18 I/O ports
- LTE modem built-in for internet access and for SMS sending/receiving
- Built-in KNX TP1, two serial interfaces
- Power-over-Ethernet powering
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of KNX TP1, KNX, ModBus RTU/TCP, BACnet IP, DMX, M-Bus and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 6 DIN units
- Remote KNX bus control and KNX device reprogramming
- Object logging with trends support and data exporting to external servers
LogicMachine5 comparison table 4.2022
I/O specification
- 1 x RS485
- 1 x RS485/RS-232 (switchable in software)
- 1 x USB2.0
- 1 x 10/100 Ethernet with passive PoE support
- 1 x KNX TP1
- 16 x Programmable Analog inputs or Digital outputs (100 mA continues current on output if all 16 ports activated)
- 2 x analog outputs 0-10V
LTE modem specification
- LTE FDD B1/B3/B7/B8/B20/B28A
- WCDMA B1/B8
- GSM B3/B8
Product datasheet and manual
Download LogicMachine5 Reactor LTE datasheet here
Download LogicMachine5 manual here
Download LogicMachine5 Reactor LTE I/O manual here
Download LogicMachine5 Reactor LTE setup guide here
Download Mosaic and Cloud manual here
Hotel solution based on LogicMachine
Hotel solution based on LogicMachine
Examples for hotel solution based on LogicMachine devices
Standards and protocols
Visualization examples
Download visualization templates here (registration required).
Custom icons can be found here.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Demo
You are welcome to try demo of Logic Machine here:
-
-
- Logic Machine demo
- login: admin
- password: admin
-
