LogicMachine
A secure and versatile IoT edge controller designed for building automation in residential, commercial and industrial environments.
LogicMachine comparison table
LogicMachine5 KNX
LogicMachine5 KNX CANx
- LM5p2-KC – KNX CANx
- LM5p2-KCD – KNX CANx DALI
- LM5p2-KCDZ – KNX CANx DALI Zigbee
- LM5p2-RIO3 – Reactor IO V3 KNX CANx
- LM5p2-RIO3E – Reactor IO V3 KNX CANx EnOcean
- LM5p2-RIO3LTE – Reactor IO V3 KNX CANx LTE
LogicMachine5 CANx
- LM5CLp2 – Lite CANx
- LM5Cp2-DW1 – DALI 1-Wire CANx
- LM5Cp2-RIO3E – Reactor IO V3 EnOcean CANx
- LM5Cp2-RIO3LTE – Reactor IO V3 LTE CANx
LogicMachine5 KNX
LM5Lp2
LogicMachine5 Lite Power
Physical interfaces:
- KNX/TP x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DIN module width: 3
LM5p2-DW1
LogicMachine5 Power DW1
Physical interfaces:
- KNX/TP x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DALI x 2
- 1-Wire x 2
- DIN module width: 4
LM5p2-PMC
LogicMachine5 Choke (KNX power supply)
Physical interfaces:
- KNX/TP x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- KNX power: 24..29V DC
- DIN module width: 4
LogicMachine5 KNX CANx
LM5p2-KC
LogicMachine5 KNX CANx
Physical interfaces:
- KNX/TP x 1
- CAN FT x 1
- RJ45 x 1
- RS-485 x 2
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DIN module width: 4
LM5p2-KCD
LogicMachine5 KNX CANx DALI
Physical interfaces:
- KNX/TP x 1
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DALI x 1
- DIN module width: 4
LM5p2-KCDZ
LogicMachine5 KNX CANx DALI Zigbee
Physical interfaces:
- KNX/TP x 1
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DALI x 1
- Wireless interface: ZigBee 2.4 GHz
- DIN module width: 4
LM5p2-RIO3
LogicMachine5 Reactor IO V3 KNX CANx
Physical interfaces:
- KNX/TP x 1
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- Analog inputs / Digital outputs x 16
- Analog outputs x 2
- DIN module width: 6
LM5p2-RIO3E
LogicMachine5 Reactor IO V3 KNX CANx EnOcean
Physical interfaces:
- KNX/TP x 1
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- Analog inputs / Digital outputs x 16
- Analog outputs x 2
- Wireless interface: EnOcean 868 MHz
- DIN module width: 6
LM5p2-RIO3LTE
LogicMachine5 Reactor IO V3 KNX CANx LTE
Physical interfaces:
- KNX/TP x 1
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- Analog inputs / Digital outputs x 16
- Analog outputs x 2
- Wireless interface: LTE
- DIN module width: 6
LogicMachine5 CANx
LM5CLp2
LogicMachine5 Lite CANx
Physical interfaces:
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DIN module width: 3
LM5Cp2-DW1
LogicMachine5 DALI 1-Wire CANx
Physical interfaces:
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- DALI x 2
- 1-Wire x 2
- DIN module width: 4
LM5Cp2-RIO3E
LogicMachine5 Reactor IO V3 EnOcean CANx
Physical interfaces:
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- Analog inputs / Digital outputs x 16
- Analog outputs x 2
- Wireless interface: EnOcean 868 MHz
- DIN module width: 6

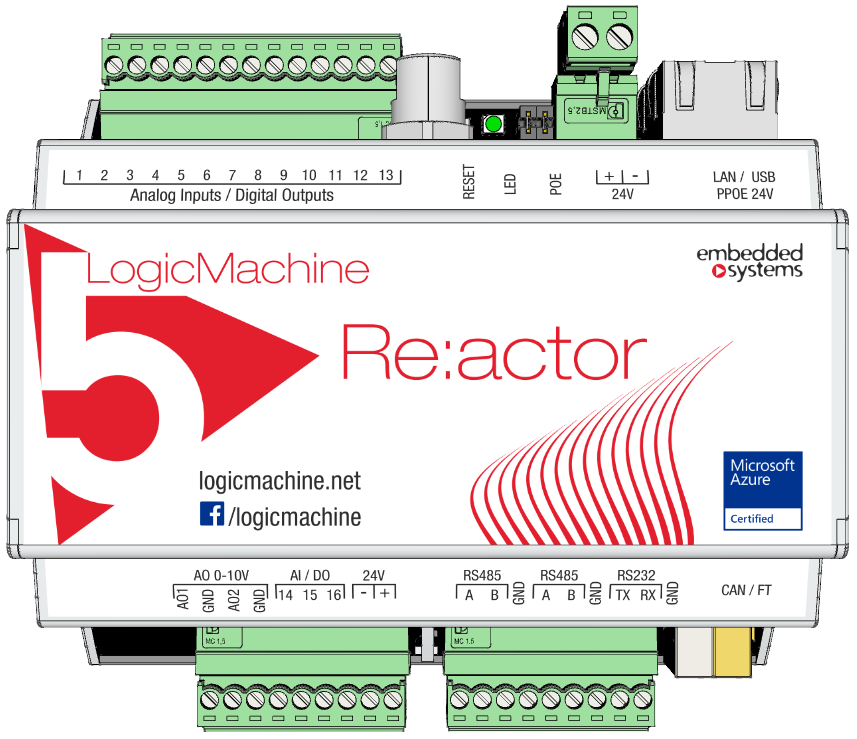

LM5Cp2-RIO3LTE
LogicMachine5 Reactor IO V3 LTE CANx
Physical interfaces:
- CAN FT x 1
- RJ45 x 1
- RS-485 x 1
- RS-485 / RS-232 x 1 (switchable in software)
- USB 2.0 x 1
- Analog inputs / Digital outputs x 16
- Analog outputs x 2
- Wireless interface: LTE
- DIN module width: 6
