Streaming Audio

Amati.linea Streaming Player – get inspiration from invisible, lossless music

Amati.line = High grade components, High-end engineering attitude, High efficiency

Invisible concept

  • Music device embedded to wall boxes, no wires
  • DIN rail mountable
  • Tiny design 52x90x51 mm

Music sources supported in-box

  • UpnP server
  • DLNA server
  • AirPlay sender
  • FTP, NFS, HTTP servers
  • Internet radio
  • Internet music services
  • Playback from USB storage

BMS ready solution

  • KNXnet/IP on-board
  • Modbus RTU/TCP on-board
  • Bacnet/IP

High quality sound

  • Up to 24 bit 192 kHz
  • losless FLAC support

Other features

  • 2 x 40W / 8 Ohms built-in amps (2-speakers)
  • 1 x analog output for subwoofer
  • 2 x USB on board for Music storage
  • Easy operation using iPhone / iPod / iPad app, Android compatible apps
  • WEB-based visualization and built-in player

Technical specification

Feature / Product Streaming player with 2x55W amplifier, DIN Streaming player HD without amplifier, DIN
Connectivity 1 x 100BaseTX ethernet
2 x USB,
1 x IR input, 3.5 mm
1 x 2 outputs for stereo loudspeakers, clamp
1 x Analog subwoofer output
1 x 0-10V analog input for external volume control, clamp
4 x Binary inputs, for standard push-button connection
1 x 100BaseTX ethernet
1 x USB,
2 x line-out, screw/RCA
1 x 0-10V analog input, clamp
4 x triggers for zone control, clamp
Audio amplifier Continues output power: 2 x 55W
THD+N: 0.07%
SNR: 102dB
Sampling frequencies / resolutions 8kHz to 384kHz 8kHz to 384kHz / 16, 24, 32 bit
Supported audio formats MP3, WAV, AAC, WMA,
FLAC, lossless FLAC 96/24, 24/192
MP3, WAV, AAC, WMA, FLAC, lossless FLAC 96/24
Protocols supported DLNA, UPnP, AirPlay, FTP, NFS, HTTP, KNXnet/IP, SAMBA DLNA, UPnP, AirPlay, FTP, NFS, HTTP, KNXnet/IP, SAMBA
Clock Oscillator Low jitter (0.5 psec typ.) Low jitter (0.5 psec typ.)
Power supply supported 18-26 VDC 7-36 VDC
Power consumption 1.2W idle mode 1.2W idle mode
Weight 0.3 kg 0.3 kg
Dimensions/Enclosure 70 x 90 x 51 mm (W x H x D), DIN-rail plastic case 52 x 90 x 51 mm (W x H x D), DIN-rail plastic case
Operating temperature -5ºC to 55ºC -5ºC to 55ºC

Application example



Used functionality

Play/stream music content on Streaming player from the following:

  • NAS/FTP/Laptop
  • HTTP server, Internet radio
  • iPhone, iPad
  • USB Flash (on specific Streaming Player)

Control of the Streaming player from:

  • iPhone, iPad app: source selection, playlists, music control etc.
  • Laptop: remotely connecting to one of Streaming Players visualization server, full player functionality, source selection, creation of playlists, integration with building automation protocols etc.
  • KNX/EIB building automation system sensors or automatically on events: Next/Previous, Pause, Mute etc.



You can download our information materials as PDF files here.

Streaming High Definition Audio Player manual

Hi End Streaming player with amplifier images

Hi End Streaming player – side view

Hi End Streaming player – side view

Hi End Streaming player – front view

Quick settings

Audio control function mapping to KNX group-addresses



Map specific song from media sources or Internet radio to KNX group-address, Sound notification system

Built-in player - quick control

Built-in player – quick control

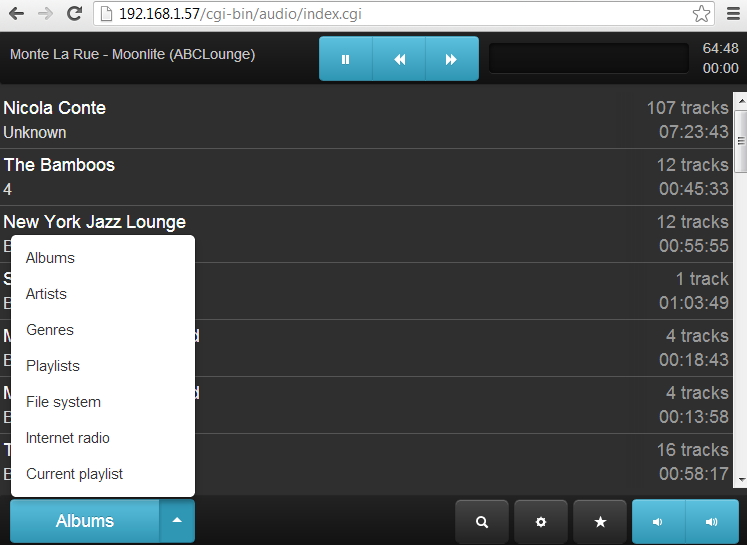

Built-in player

Built-in player

Built-in internet radios

Built-in internet radios

Playlists

Playlists

Mapped file systems

Mapped file systems

Stream directly from iTunes via Airplay

Stream directly from iTunes via Airplay

Control from touch devices

Control from touch devices
