Logic Machine platform enables installer to efficiently customize building automation processes,
easily delivering unlimited flexibility benefit to end users in a cost-effective way.

IP Router functionality

  • Interactive telegram filtering by source and/or group addresses
  • Object logger
  • Secure tunnel protocol for SCADA applications and KNXnet/IP connection
  • Fast multi-level visualization creation and processing
  • PC, Android/iOS touch visualization
  • Event-based, scheduled and resident scripts
  • Automatic detection of KNX/EIB objects
  • 2 USB ports on board for WiFi, GSM and other peripheral connection

Standard and protocol Compatibility

  • WIFI through USB
  • Modbus – RS485 or Ethernet
  • GSM through USB
  • DALI through KNX-DALI gateway
  • KNX on-board
  • EnOcean through USB or KNX gateway
  • Ekey through RS485
  • DMX through RS485
  • BACnet through Ethernet or RS485
  • HDL through Ethernet
KNX Logic Machine supported standards and protocols

KNX/EIB Logic Machine II user interface and visualization
KNX Logic Machine supported standards and protocols

Technical specification
Platform 2 x CPU on-board:
− ARM9 400MHz
− Atmel AVR
SDRAM 64 MB
Flash 256 MB
Connectivity 1 x 100BaseTX ethernet port, 2 x USB ports, 1 x RS485
IO on-board 4 x open collector outputs for controlling external relay modules;
4 x 0-30 V analogue-binary inputs
KNX interface Integrated KNX FT1.2
Power input 7-36 VDC from external power supply
Real Time Clock yes
Hardware watchdog yes
Physical and Warranty
Case 52 x 90 x 51 mm (W x H x D), DIN-rail plastic
Operating temperature -5°C to 45°C
Warranty 2 years

Features

  • Fast multi-level visualization creation and processing

Create your visualization map just in few steps by freely uploading background image file and adding objects.
Built-in 400MHz CPU guarantees very fast visualization processing even with huge count of objects.

  • PC, Android/iOS touch visualization

A specific touch visualization is included in Logic Machine
for Android and iOS system based touch devices.

  • IP Router functionality

Logic Machine acts like IP router with functionality like KNX telegram filter by source and group addresses, firewalling and quality of service.
It can be used as KNX Line coupler or Area coupler.

  • Object logger

There is a possibility to enable logging for each
of the KNX objects to trace its historical activity afterwards.

  • Secure tunnel protocol for SCADA applications

To unite two or more offices over Internet secure tunneling
should be used making one common KNX network over TCP/IP network.

  • Event-based, Scheduled functions and Resident scripts

There are three types of scripts implemented in the Logic Machine:

Event-based – scripts that are executed when a group event occurs on the bus.
Usually used when nearly real-time response is required.
Scheduled – scripts that run at the required time and day.
Can be used for various security systems and presence simulations.
Resident function – scripts that use polling to check for object state changes.
Usually used for heating and ventilation when data is gathered from more than one group address.

  • Object names and tagging

You can use unique names or several tags to mark your objects.
This way group addresses can be easily changed without the risk of breaking scripts.
Tagging system allows working with several similar objects at once.

  • Scripting repository and built-in helpers

Scripting editor features built-in code snippets which make creating scripts significantly easier for the end-user.
All customers gain access to the scripting repository with examples and tutorials for all common scenarios.

  • Automatic detection of all objects

Logic Machine automatically adds new objects to the database when group events occur, so there is no need of doing it manually.
Just set the correct data type and your new object is ready for scripting.

Application example

Installation is done in trade center consisting of 16 floors.
For transparency purposes only three are showed in this application example.

Used functionality

  • IP Router with telegram blocking from one line to another
  • Each LM acts also like visualization server for separate touch screens on each floor
  • Object status logging for each line on respective LM
  • Blinds, lighting and temperature control with specific scheduled and even-based scripts
  • Each separate LM is accessible from internet





You can download our information materials as PDF files here.

KNX/EIB Logic Machine 2

KNX/EIB Logic Machine 2 Interface feature matrix

KNX/EIB Logic Machine 2 Manual

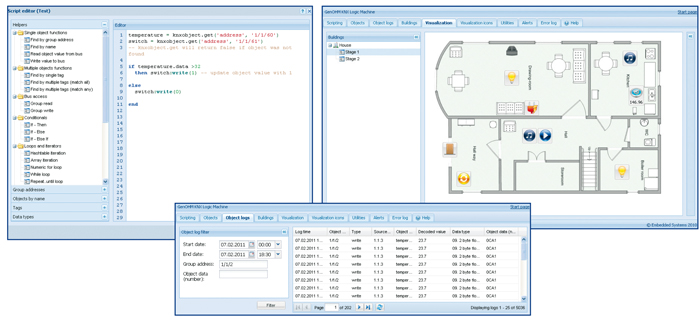

For more features and screenshots
